Transactions

Webhooks

Configure webhooks in Engine to notify your backend server of transaction or backend wallet events.

Supported events

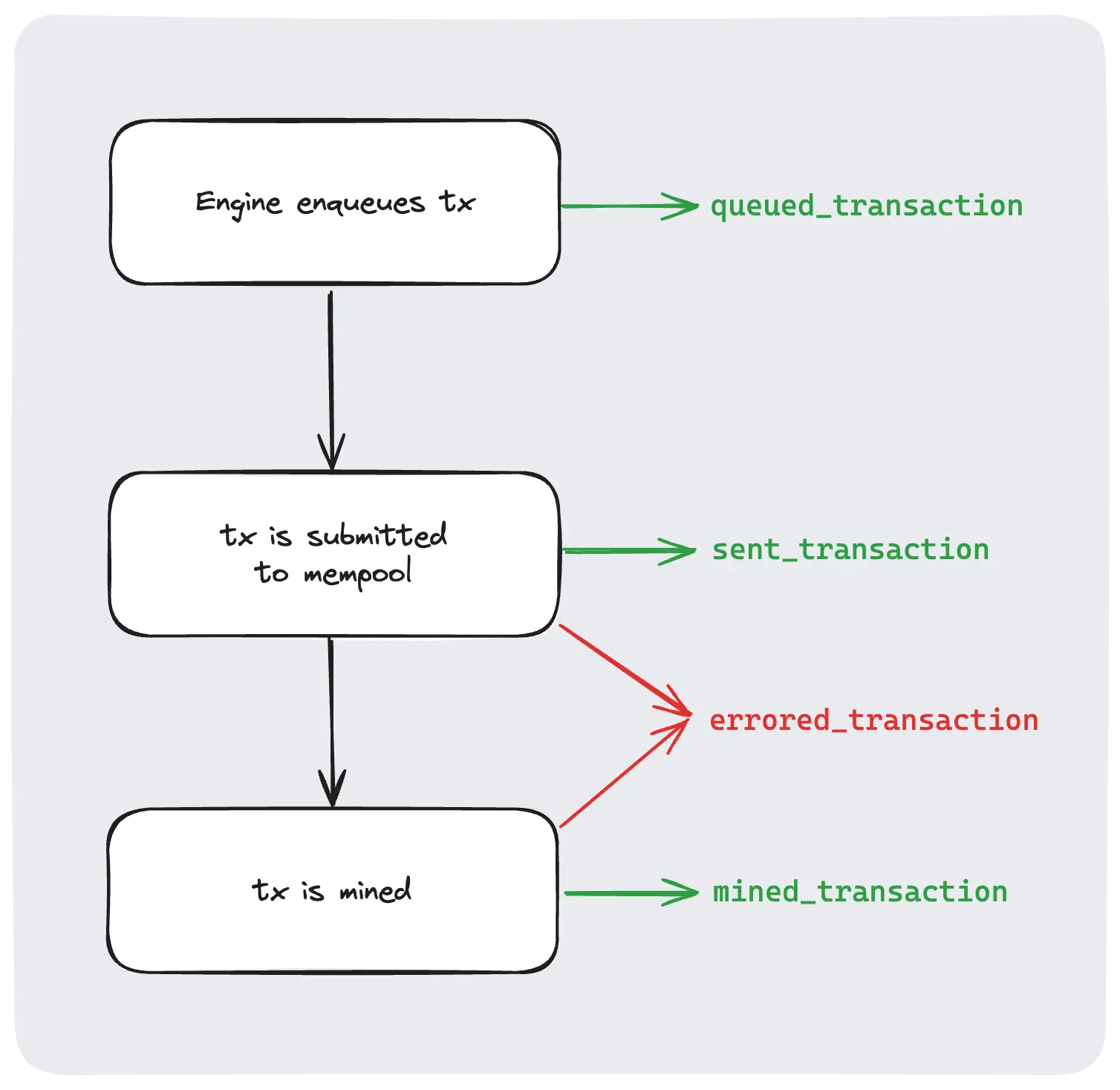

Transactions

Handle when a blockchain transaction is sent and mined onchain.

Event	Description
`sent_transaction`	A transaction is submitted to RPC. A transaction hash is provided, but it may not be mined onchain yet.
`mined_transaction`	A transaction is mined on the blockchain. Note: The transaction may have reverted onchain. Check the `onchainStatus` field to confirm if the transaction was successful.
`errored_transaction`	A transaction is unable to be submitted. There may be an error in the transaction params, backend wallet, or server.
`all_transaction`	All the above events.

The transaction payload contains a status field which is one of: sent, mined, errored

Depending on the transaction, your backend will receive one of these webhook sequences:

Transaction statuses	Description
`sent` + `mined`	The transaction was sent and mined onchain.
`errored`	The transaction errored before being sent. Common reasons: The transaction failed simulation, the backend wallet is out of funds, the network is down, or another internal error, transaction with a gas ceiling timed out. The errorMessage field will contain further details.
`sent` + `errored`	The transaction was sent but was not mined onchain after some duration. Common reasons: The transaction was dropped from RPC mempool, another transaction was mined with the same nonce, or the nonce was too far ahead of the onchain nonce.
`cancelled`	The transaction was in queue (not sent yet) and cancelled.
`sent` + `cancelled`	The transaction was sent and waiting to be mined, but cancelled.

Note: Webhooks may come out of order. Treat later statuses as higher priority than earlier ones. For example if your backend receives a sent webhook after a mined webhook, treat this transaction as mined.

Wallets

Event	Description
`backend_wallet_balance`	A backend wallet's balance is below `minWalletBalance`. To read or update this value, call `GET/POST /configuration/backend-wallet-balance`.

Setup

Create a webhook

Visit the Engine dashboard and select your Engine.
Select the Configuration tab.
Select Create Webhook.

Webhook URLs must start with https://.

Payload format

Method: POST

Headers:

Content-Type: application/json
X-Engine-Signature: <payload signature>
X-Engine-Timestamp: <Unix timestamp in seconds>

Webhook verification (recommended)

Since any outside origin can call your webhook endpoint, it is recommended to verify the webhook signature to ensure a request comes from your Engine instance.

Check the signature

The payload body is signed with the webhook secret and provided in the X-Engine-Signature request header.

Get the webhook secret for your webhook endpoint from the dashboard.

This code example checks if the signature is valid:


const generateSignature = (
  body: string,
  timestamp: string,
  secret: string,
): string => {
  const payload = `${timestamp}.${body}`;
  return crypto
    .createHmac("sha256", secret)
    .update(payload)
    .digest("hex");
};

const isValidSignature = (
  body: string,
  timestamp: string,
  signature: string,
  secret: string,
): boolean => {
  const expectedSignature = generateSignature(
    body,
    timestamp,
    secret,
  );
  return crypto.timingSafeEqual(
    Buffer.from(expectedSignature),
    Buffer.from(signature),
  );
};

Check the timestamp

The event timestamp is provided in the X-Engine-Timestamp request header.

This code example checks if the event exceeds a given expiration duration:


export const isExpired = (
  timestamp: string,
  expirationInSeconds: number,
): boolean => {
  const currentTime = Math.floor(Date.now() / 1000);
  return currentTime - parseInt(timestamp) > expirationInSeconds;
};

Example webhook endpoint

This NodeJS code example listens for event notifications on the /webhook endpoint:


import express from "express";
import bodyParser from "body-parser";
import { isValidSignature, isExpired } from "./webhookHelper";

const app = express();
const port = 3000;

const WEBHOOK_SECRET = "<your_webhook_auth_secret>";

app.use(bodyParser.text());

app.post("/webhook", (req, res) => {
  const signatureFromHeader = req.header("X-Engine-Signature");
  const timestampFromHeader = req.header("X-Engine-Timestamp");

  if (!signatureFromHeader || !timestampFromHeader) {
    return res
      .status(401)
      .send("Missing signature or timestamp header");
  }

  if (
    !isValidSignature(
      req.body,
      timestampFromHeader,
      signatureFromHeader,
      WEBHOOK_SECRET,
    )
  ) {
    return res.status(401).send("Invalid signature");
  }

  if (isExpired(timestampFromHeader, 300)) {
    // Assuming expiration time is 5 minutes (300 seconds)
    return res.status(401).send("Request has expired");
  }

  // Process the request
  res.status(200).send("Webhook received!");
});

app.listen(port, () => {
  console.log(`Server started on http://localhost:${port}`);
});
